De lesmotor, Cat. A1

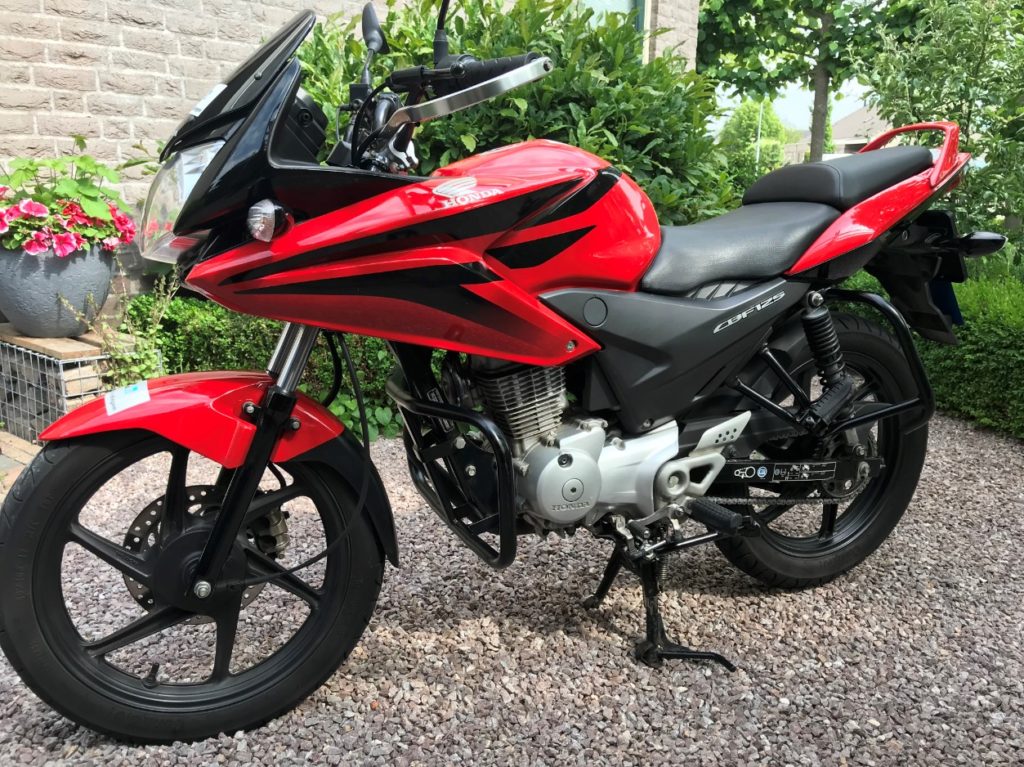

Honda CBF125 – 2013
General information
Model:Honda CBF125
Year:2013
Category:Sport
Engine and transmission
Displacement:124.70 ccm (7.61 cubic inches)
Engine type:Single cylinder, four-stroke
Power:11.13 HP (8.1 kW)) @ 8000 RPM
Torque:11.20 Nm (1.1 kgf-m or 8.3 ft.lbs) @ 6250 RPM
Compression:9.2:1
Bore x stroke:52.4 x 57.8 mm (2.1 x 2.3 inches)
Valves per cylinder:2
Fuel system:Injection. PGM-FI
Fuel control:Overhead Cams (OHC)
Ignition:Computer controlled fully transistorised with electronic advance
Cooling system:Air
Gearbox:5-speed
Driveline:2.63
Chassis, suspension, brakes and wheels
Frame type:Steel
Front suspension:30mm telescopic fork
Front wheel travel:115 mm (4.5 inches)
Rear suspension:Conventional twin shock, double tube damper with 3-step adjustable spring preload
Rear wheel travel:87 mm (3.4 inches)
Front tyre:80/100-M17
Rear tyre:100/90-M17
Front brakes:Single disc. 2-pod calliper and resin mould pads
Front brakes diameter:240 mm (9.4 inches)
Rear brakes:Expanding brake (drum brake)
Rear brakes diameter:130 mm (5.1 inches)
Wheels:U-cross-section 6-spoke cast aluminium
Physical measures and capacities
Dry weight:128.0 kg (282.2 pounds)
Power/weight ratio:0.0870 HP/kg
Seat height:792 mm (31.2 inches) If adjustable, lowest setting.
Overall length:1,955 mm (77.0 inches)
Ground clearance:173 mm (6.8 inches)
Wheelbase:1,270 mm (50.0 inches)
Fuel capacity:13.00 litres (3.43 gallons)
Other specifications
Color options:Red, black, white
Starter:Electric
